| name | parameter |
| model | BP-10.0-LV1 |
| Single cell | |
| Cell type | LFP |
| Battery cell rated capacity | 100Ah |
| Battery cell rated voltage | 3.2Vdc |
| Battery cell rated voltage | |
| Rated capacity | 10240Wh |
| Combination method | 16S2P |
| Rated voltage | 51.2VDC |
| Working voltage range | 44.8~57.6VDC |
| Maximum charging voltage | 57.6VDC |
| Discharge cutoff voltage | 44.8VDC |
| Charging method | CC-CV |
| Maximum continuous charging current | 100A |
| Maximum continuous discharge current | 200A |
| Battery pack activation method | Button activation, charging activation |
| in parallel | A maximum of 16 battery packs can be connected in parallel, and series connection is prohibited. |
| communication | RS485，CAN，Dry Contact |
| Communication interface type | RJ45 |
| Charging temperature range | 0~55℃ |
| Discharge temperature range | -20~55℃ |
| On/off button | rocker switch |
| reset switch | Yes, touch switch (on communication board) |
| cycle life | ＞6000（70%DOD） |
| net weight | 90±1kg |
| Product dimensions (W*H*D)） | 486*750*225mm |
| Protection level | IP21 |
| Cooling method | natural cooling |
| Installation method | Wall-mounted and floor-mounted |
Off-Grid Inverter

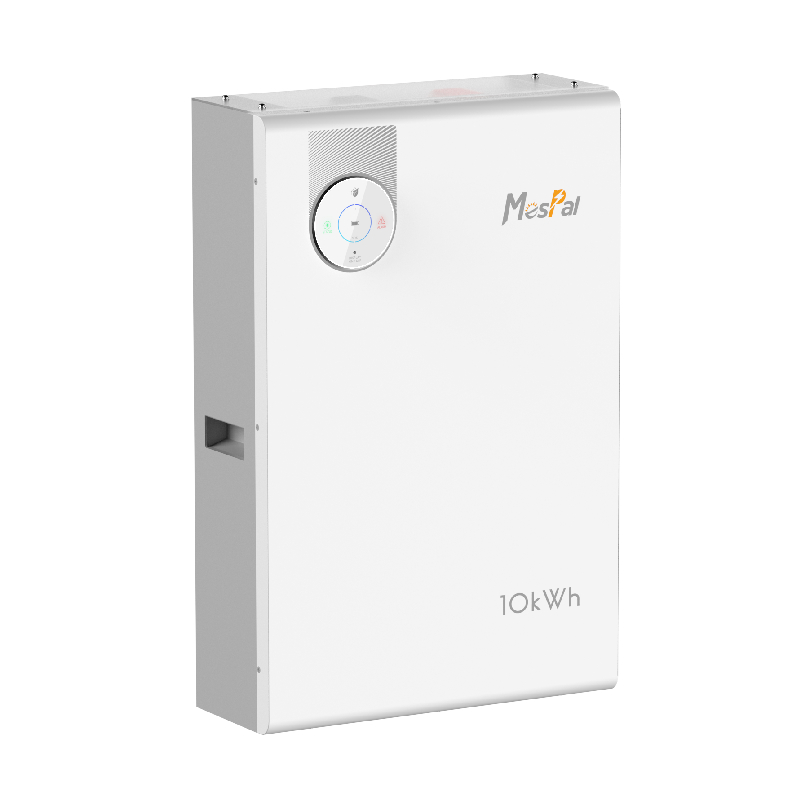

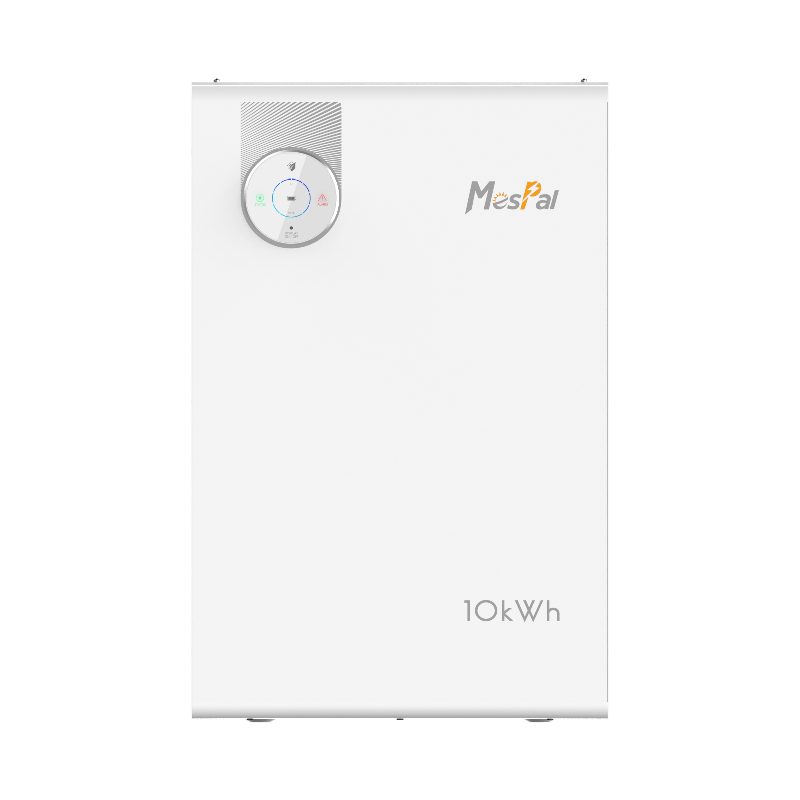

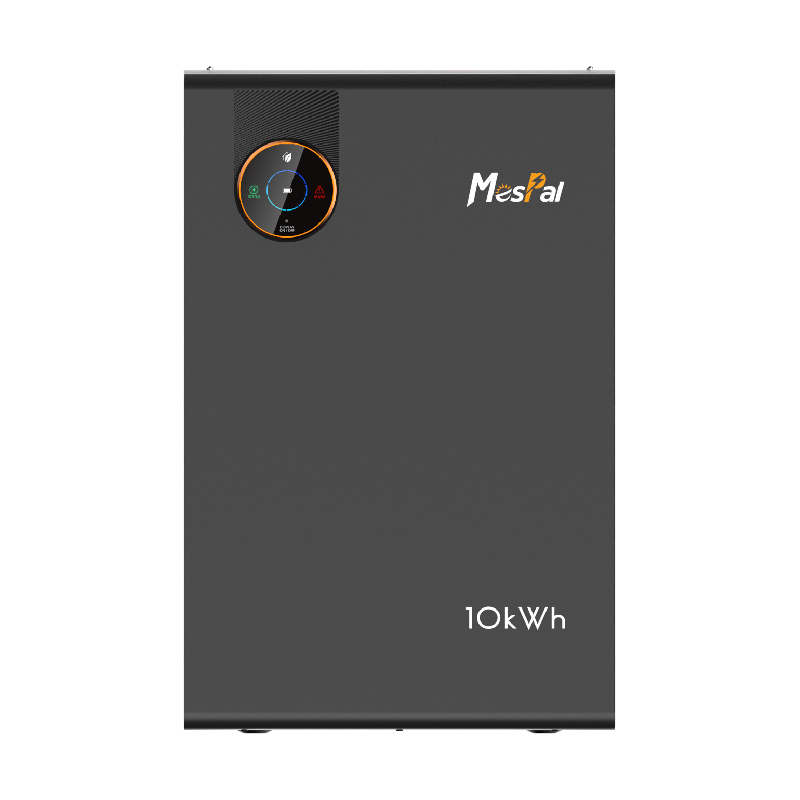

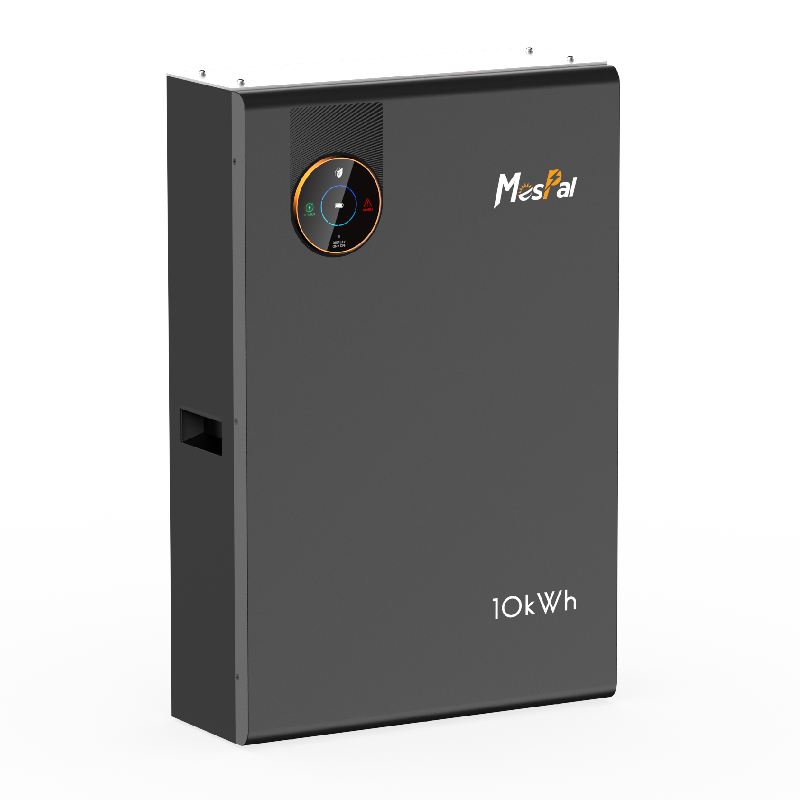

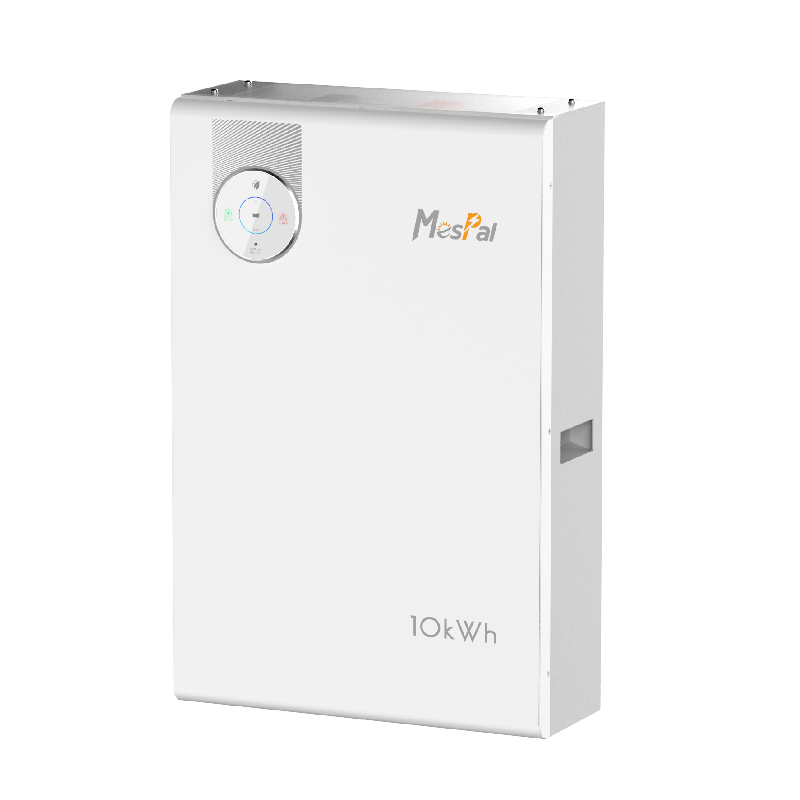

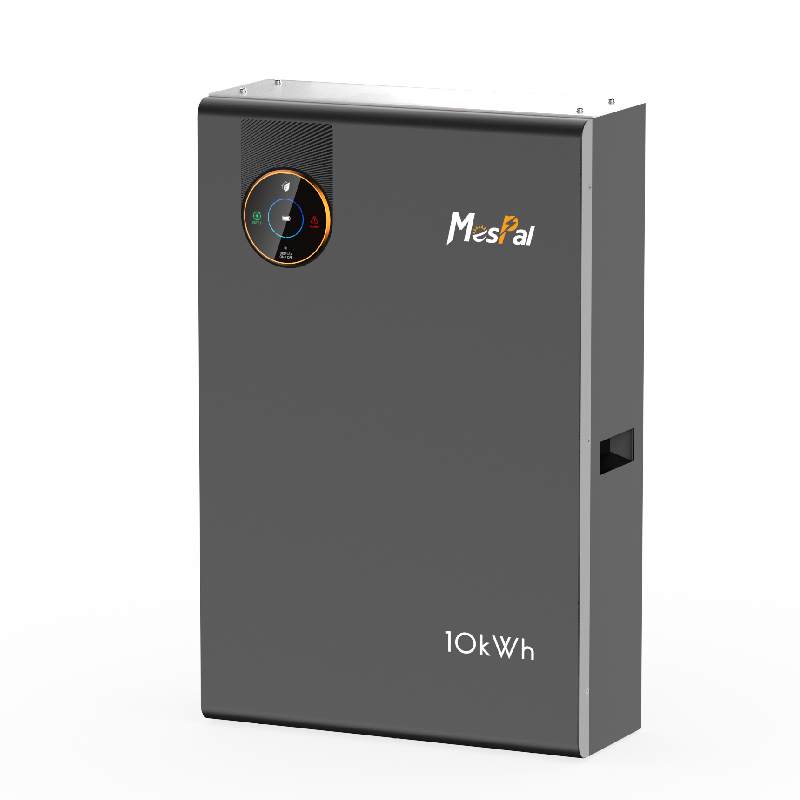

10kWH Solar Battery
10 kWh (LFP 100Ah)
10kWh supports remote fault diagnosis, upgrade and maintenance. Featuring modular parallel connection of up to 16 identical battery packs for a max 160kWh capacity to fit diverse household needs, it uses safe lithium iron phosphate batteries with self-developed high-performance BMS. It communicates and works with mainstream inverters, allows up to 100A charging and 200A discharging, and supports wall-mounted and floor-mounted installation.
Specifications
Main features
（1）Support remote fault diagnosis, upgrade and maintenance.
（2）It supports parallel use of up to 16 battery packs of the same model with a capacity of up to 160kWh. The number of parallel connections can be selected according to customer needs to meet the needs of different families.
（3）It uses lithium iron phosphate batteries and a self-developed high-quality battery management system (BMS), which is safe and reliable.
（4）Supports communication with a variety of mainstream inverters, works collaboratively, and is convenient and flexible.
（5）It can support a maximum of 100A charging and 200A discharging.
（6）A variety of installation methods, including wall-mounted and floor-mounted.
