| name | parameter |
| model | BP-16.0-LV1 |
| Single cell | |
| Cell type | LFP |
| Battery cell rated capacity | 314Ah |
| Battery cell rated voltage | 3.2Vdc |
| Battery PACK | |
| Rated capacity | 16076Wh |
| Combination method | 16S1P |
| Rated voltage | 51.2VDC |
| Working voltage range | 44.8~57.6VDC |
| Maximum charging voltage | 57.6VDC |
| Discharge cutoff voltage | 44.8VDC |
| Charging method | CC-CV |
| Maximum continuous charging current | 155A |
| Maximum continuous discharge current | 220A |
| Battery pack activation method | Button activation, charging activation |
| in parallel | A maximum of 16 battery packs can be connected in parallel, and series connection is prohibited. |
| communication | RS485，CAN，Dry Contact |
| Communication interface type | RJ45 |
| Charging temperature range | 0~55℃ |
| Discharge temperature range | -20~55℃ |
| On/off button | rocker switch |
| reset switch | Yes, touch switch (on communication board) |
| cycle life | ＞8000（80%DOD） |
| net weight | 116±1kg |
| Product size (W*H*D) | 463*881*271mm |
| Protection level | IP21 |
| Cooling method | natural cooling |
| Installation method | Wall mount, floor mount (wheels optional) |
Off-Grid Inverter
16kWH Solar Battery
16 kWh (LFP 314Ah)
16kWh enables remote fault diagnosis, upgrade and maintenance. Up to 16 identical battery packs can be paralleled for a maximum 256kWh capacity to suit different household requirements. Adopting safe lithium iron phosphate batteries with self-developed high-quality BMS, it communicates seamlessly with mainstream inverters. It supports up to 155A charging and 220A discharging, and offers wall-mounted, floor-mounted installation with optional wheels.
Specifications

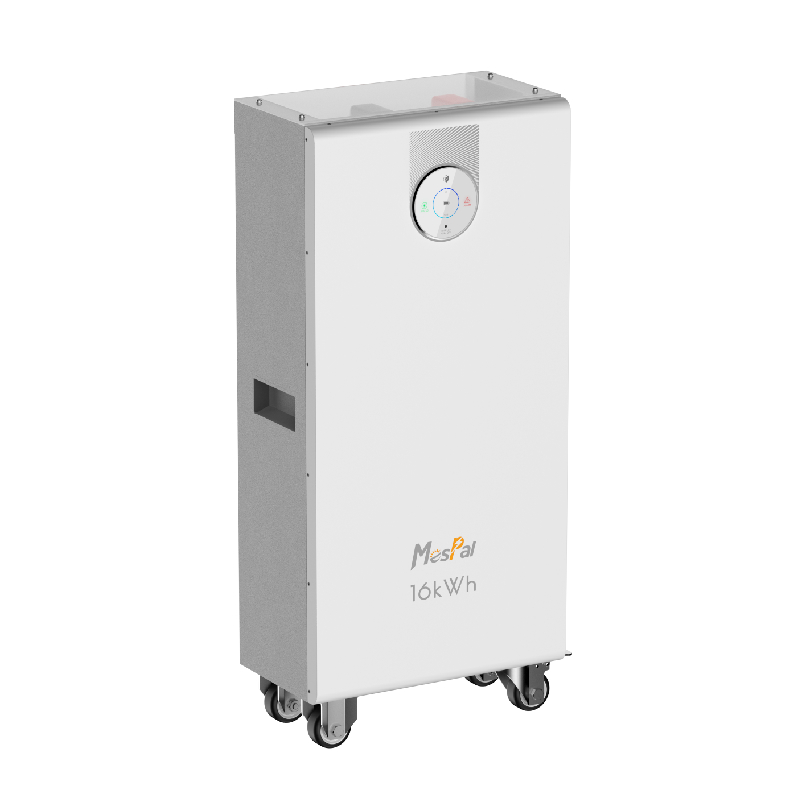

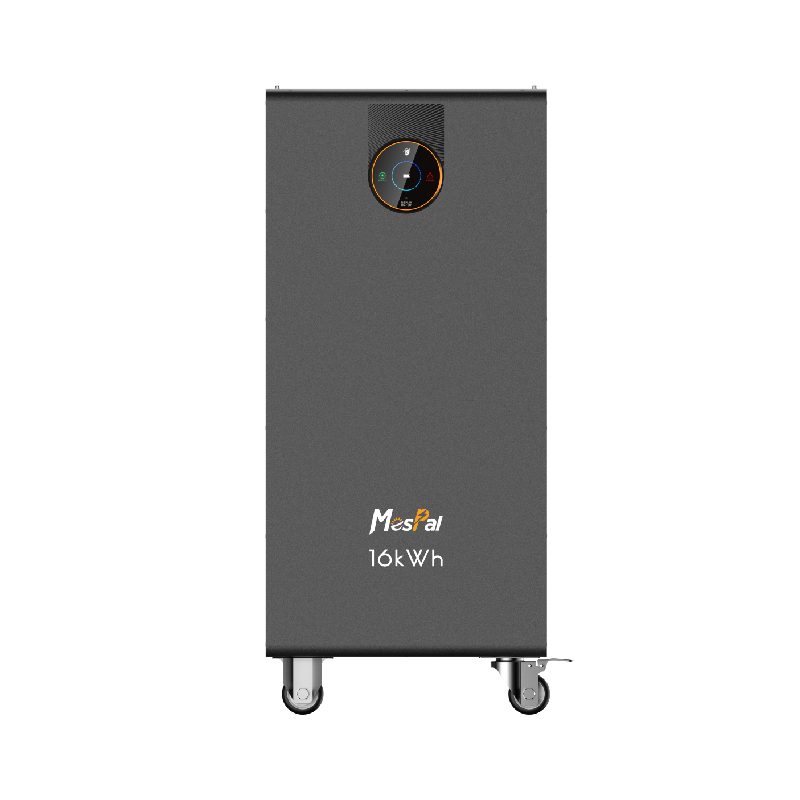

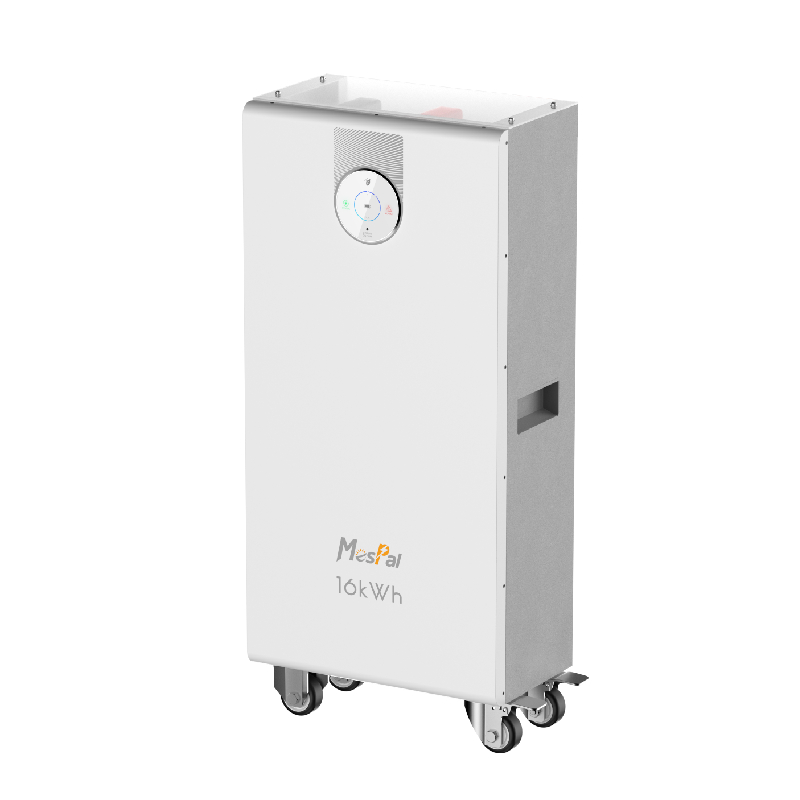

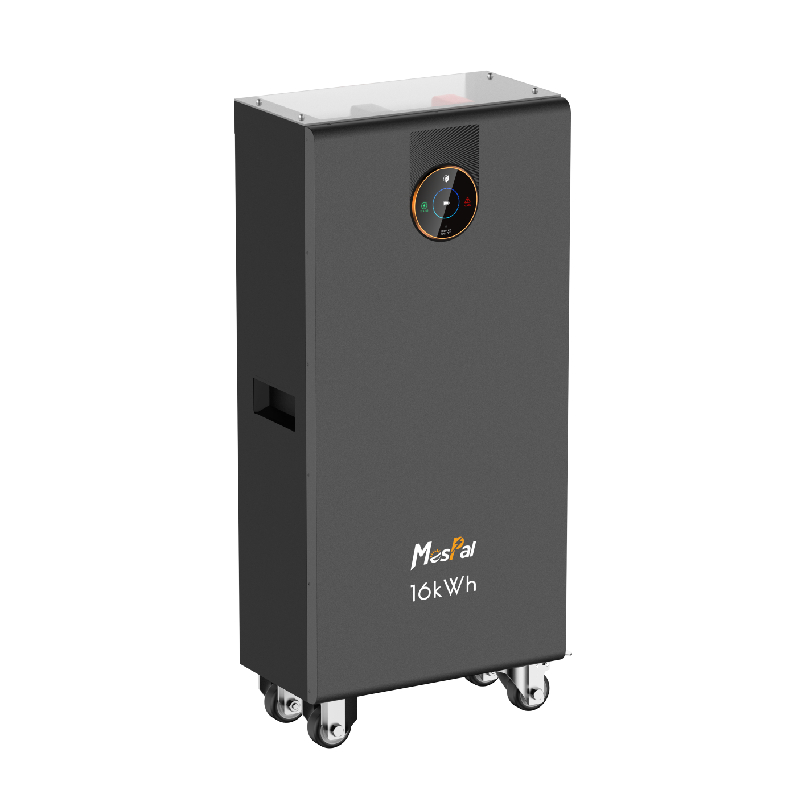

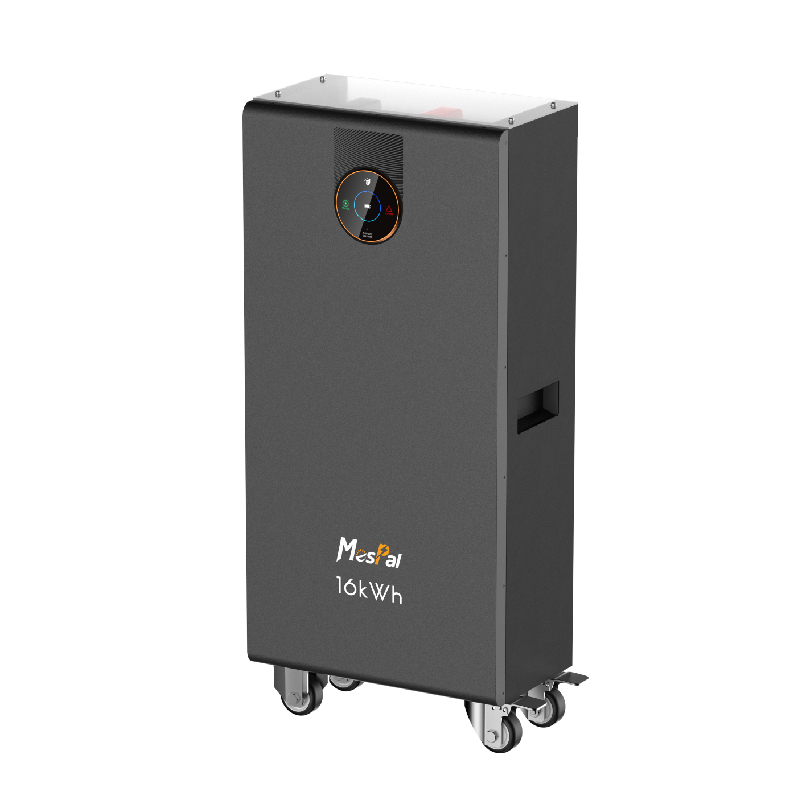

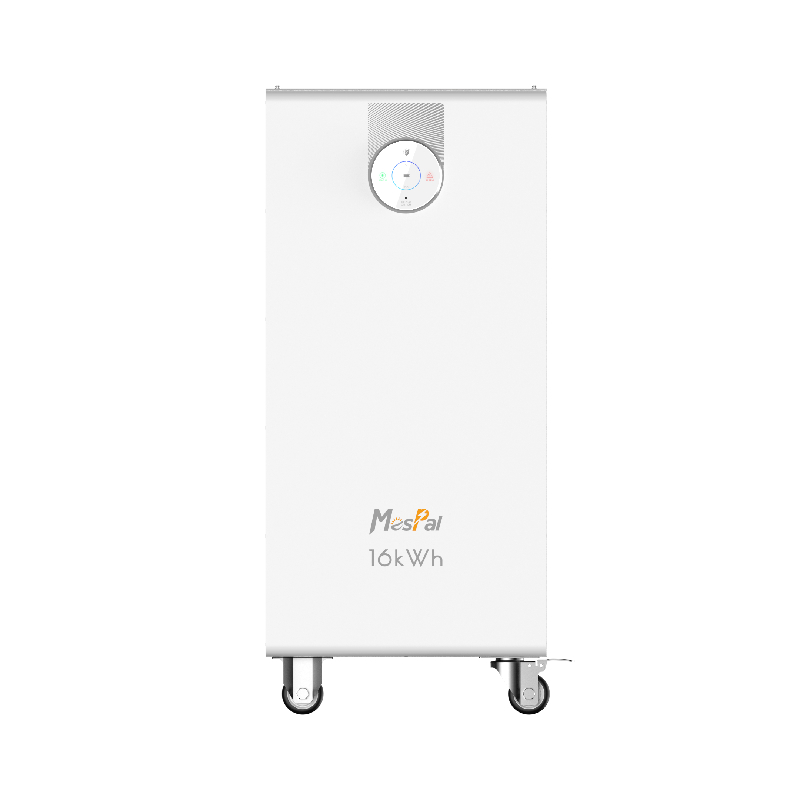

Product appearance
（1）Support remote fault diagnosis, upgrade and maintenance.
（2）It supports parallel use of up to 16 battery packs of the same model with a capacity of up to 256kWh. The number of parallel connections can be selected according to customer needs to meet the needs of different families.
（3）It uses lithium iron phosphate batteries and a self-developed high-quality battery management system (BMS), which is safe and reliable.
（4）Supports communication with a variety of mainstream inverters, works collaboratively, and is convenient and flexible.
（5）It can support a maximum of 155A charging and 220A discharging.
（6）Multiple installation methods, including wall-mounted and floor-mounted, and optional wheels.
