| name | parameter |
| model | BP-5.0-LV2 |
| Single cell | |
| Cell type | Lithium Iron Phosphate |
| Battery cell rated capacity | 100Ah@0.2C 25℃ |
| Battery cell rated voltage | 3.2Vdc |
| Battery PACK | |
| Rated capacity | 5120Wh |
| Combination method | 16S1P |
| Rated voltage | 51.2Vdc |
| Working voltage range | 44.8~57.6Vdc |
| Maximum charging voltage | 57.6Vdc |
| Discharge cutoff voltage | 44.8Vdc |
| Charging method | CC-CV |
| Maximum continuous charging current | 50A（0.5C） |
| Maximum continuous discharge current | 100A（1C） |
| Battery pack activation method | Button activation, charging activation |
| in parallel | A maximum of 16 battery packs can be connected in parallel, and series connection is prohibited. |
| communication | RS485，CAN，Dry Contact |
| Charging temperature range | 0~55℃ |
| Discharge temperature range | -20~55℃ |
| On/off button | rocker switch |
| reset switch | Yes, touch switch (on communication board) |
| light panel switch | Yes, touch switch (on the light board) |
| cycle life | 6000 times (@25±2℃, 0.5C charge/0.5C discharge) |
| net weight | 45kg |
| gross weight | 51kg |
| Product size | W*H*D=460*543*202mm (±2mm) |
| Packing size | L*W*H=644*574*293mm (±2mm) |
| Protection level | IP21 |
Off-Grid Inverter

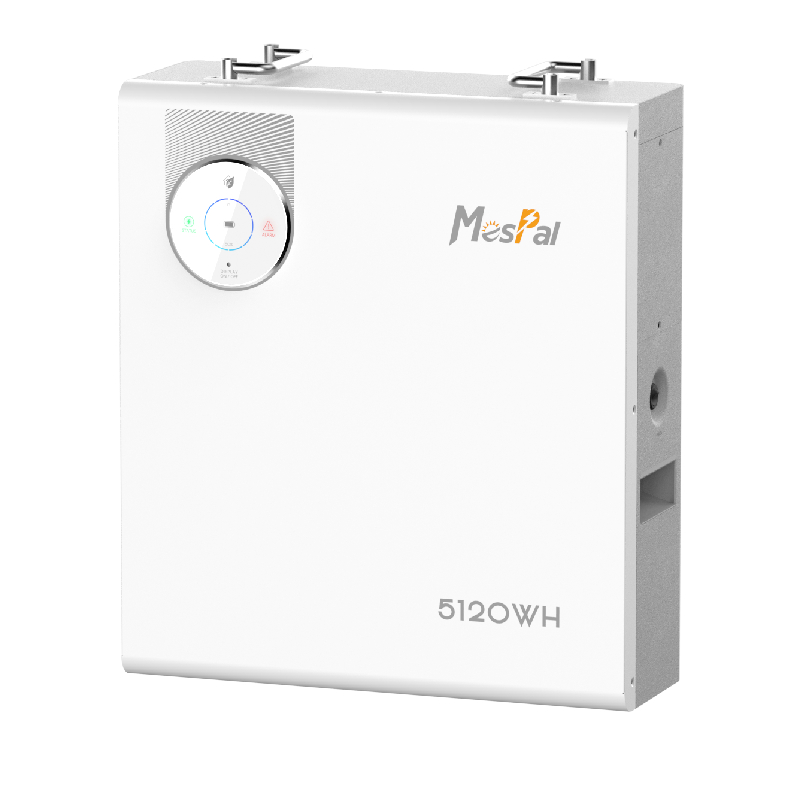

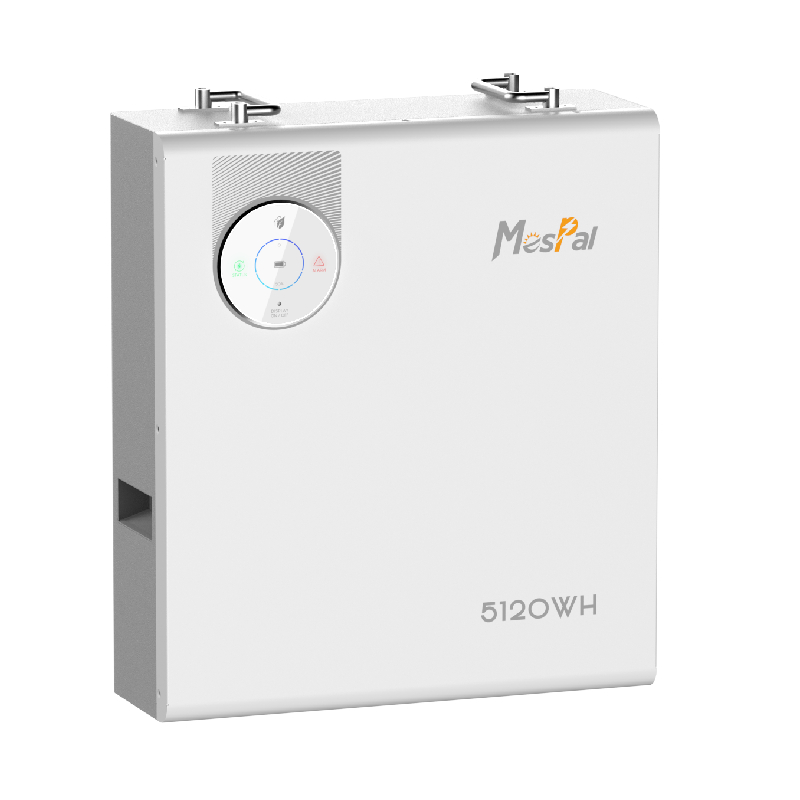

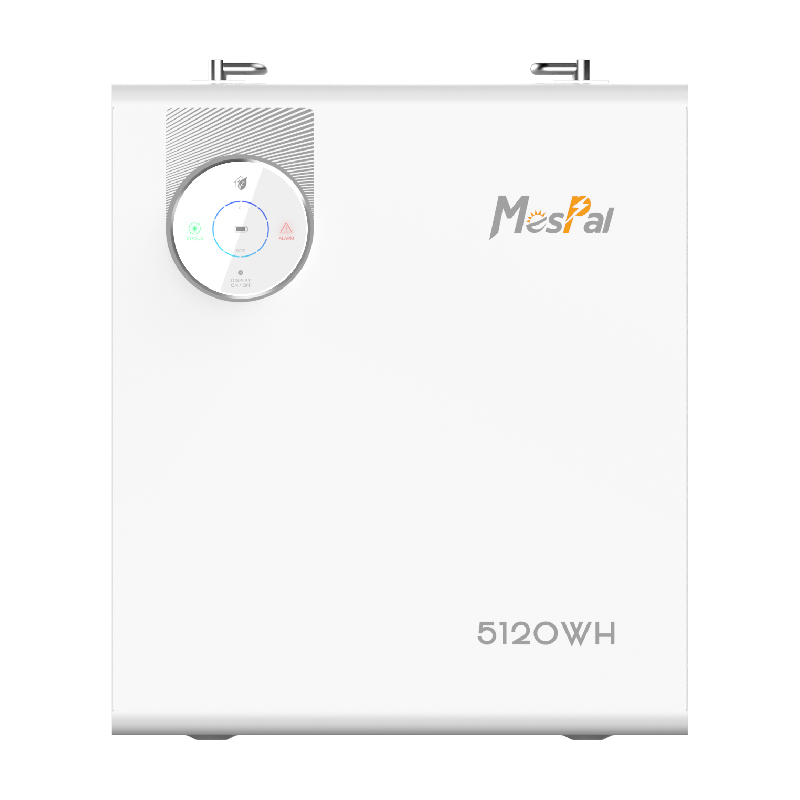

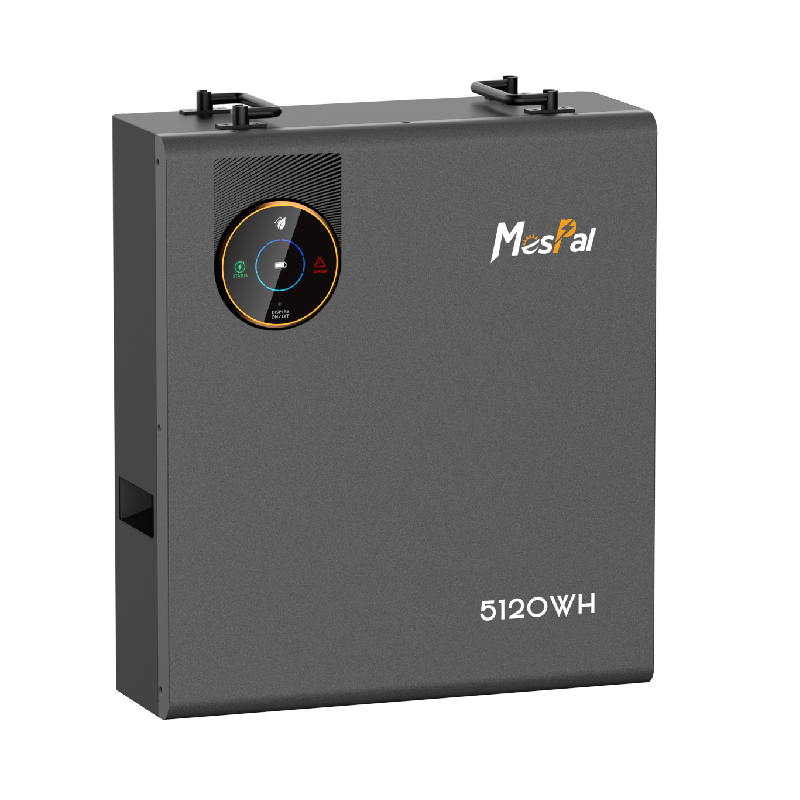

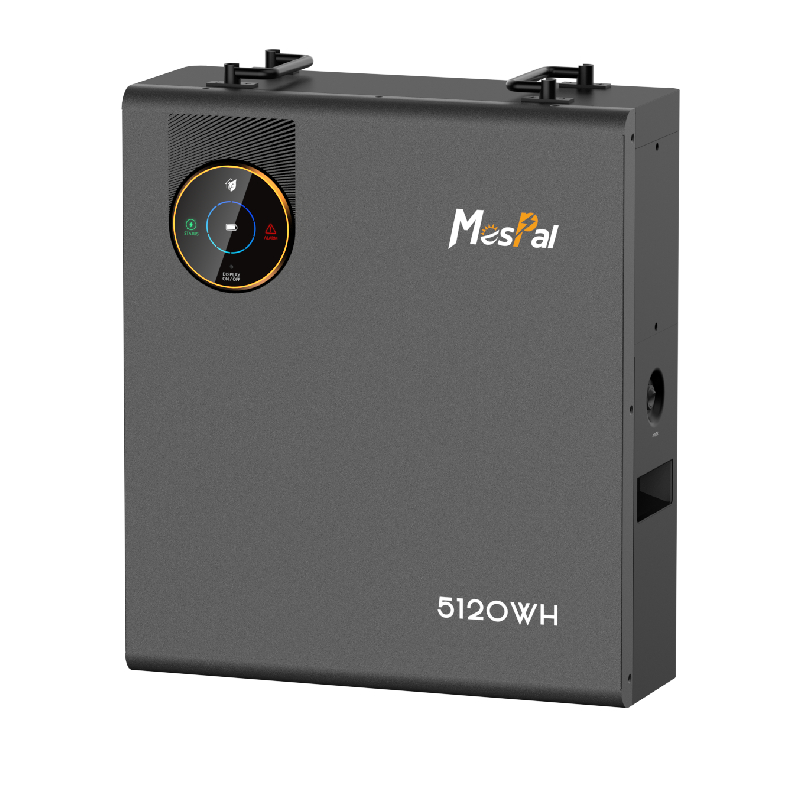

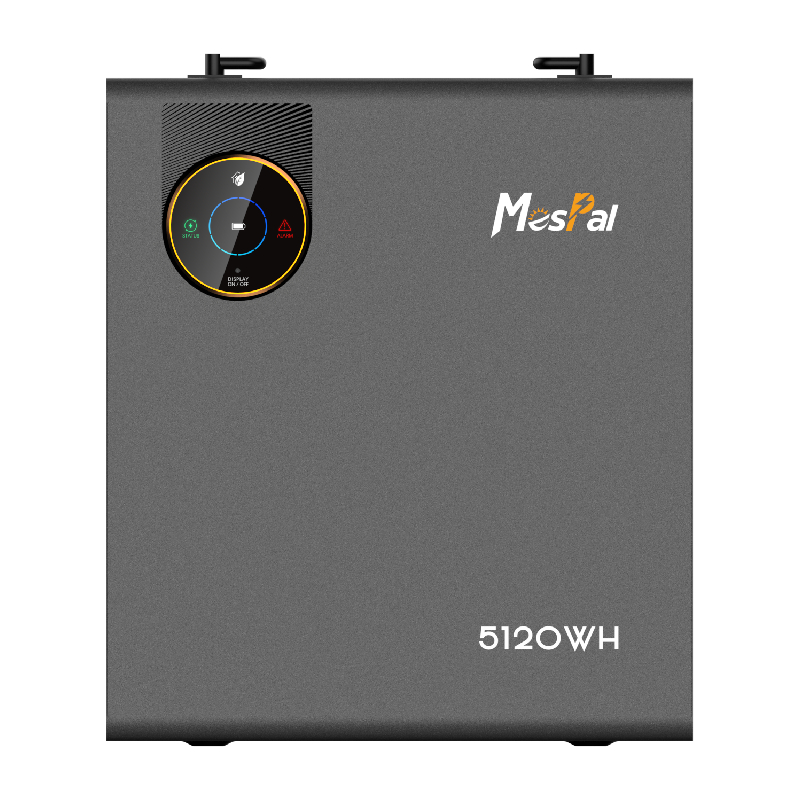

5kWh Solar Battery
5120Wh (LFP 100A)
This 5 kWH product has a large display with on/off control for real-time status viewing. Modular design enables up to 16 identical battery packs in parallel for flexible household capacity. It adopts safe lithium iron phosphate batteries with mature BMS compatible with mainstream inverters, supports 0.5C max charge and 1C max discharge, and allows wall mounting for space saving.
Specifications
Main features
（1）It adopts a large-size display solution, with real-time control of key information, and is equipped with display buttons to turn the screen on/off according to usage needs.
（2）The modular design supports parallel use of up to 16 battery packs of the same model. The number of parallel connections can be selected according to customer needs to meet the needs of different families.
（3）It uses lithium iron phosphate batteries and a mature battery management system (BMS) solution, which is safe and reliable.
（4）The built-in BMS can communicate and work with a variety of mainstream inverters, and can be used with multiple mainstream inverters.
（5）It supports a maximum of 0.5C charging and 1C discharging.
（6）Support wall installation to save space.
