3.5KW Solar Inverter

3.5KW Solar Inverter
3.5KW Solar Inverter
3.5KW Solar Inverter
3.5KW Solar Inverter
3.5KW Solar Inverter
3.5KW Solar Inverter

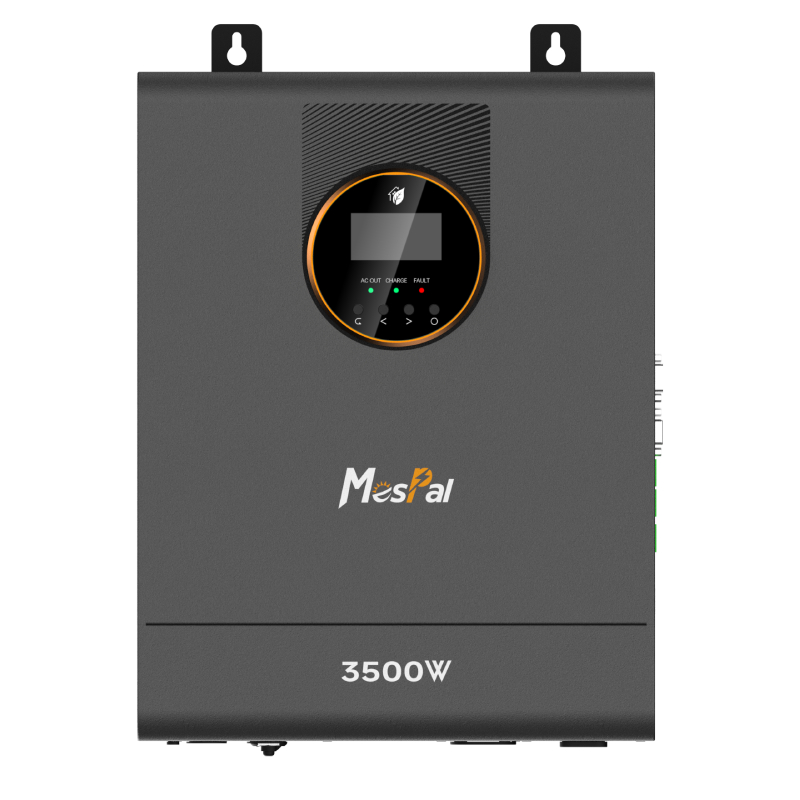

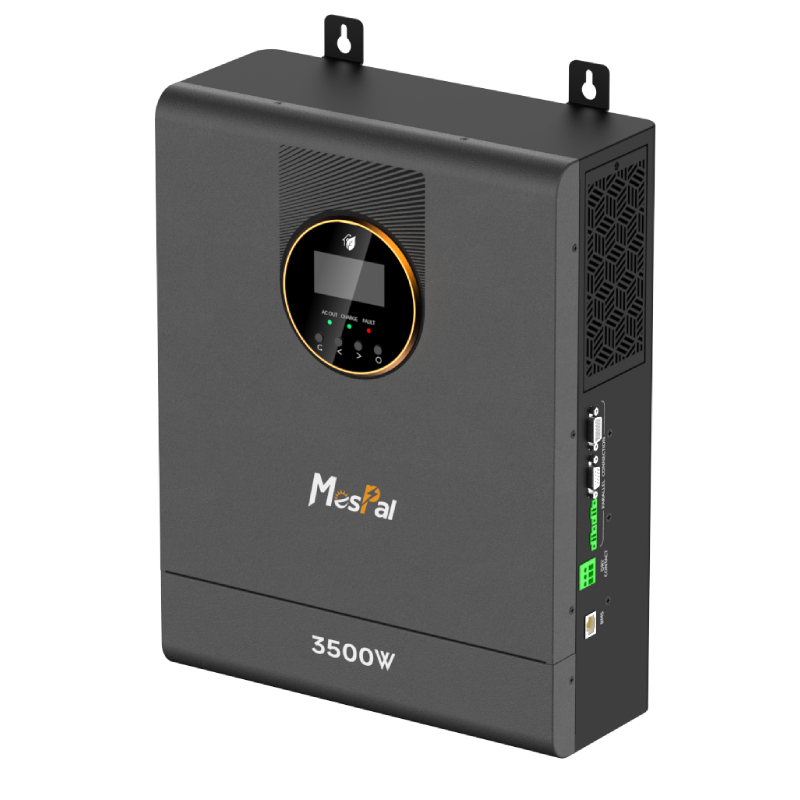

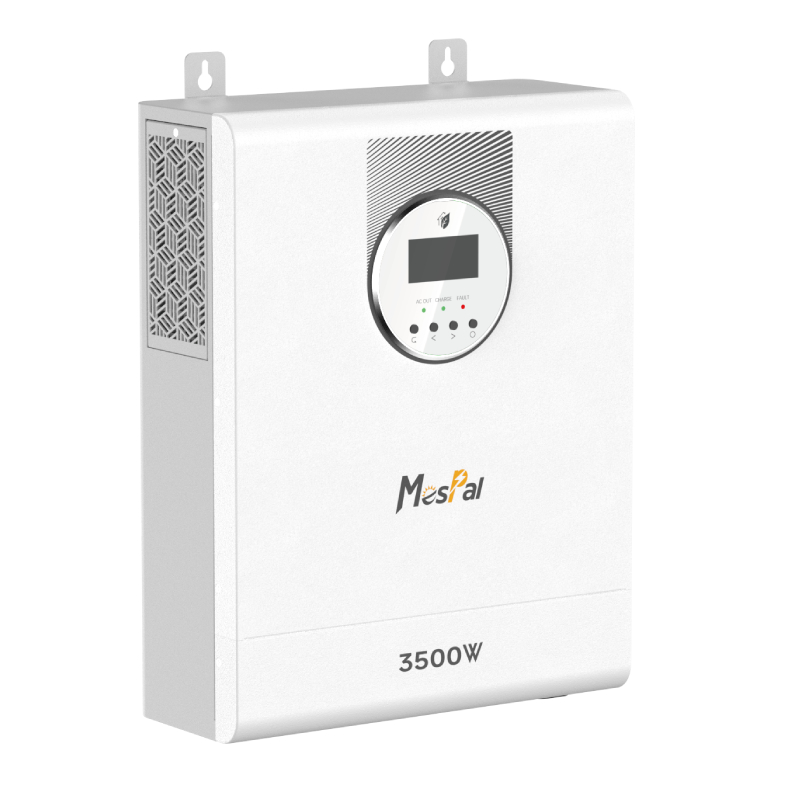

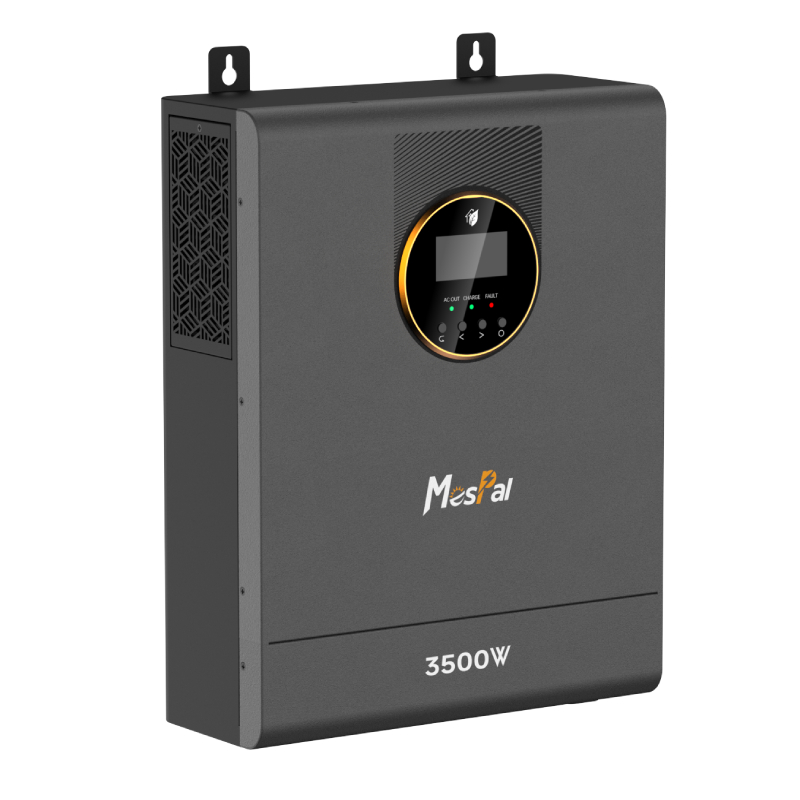

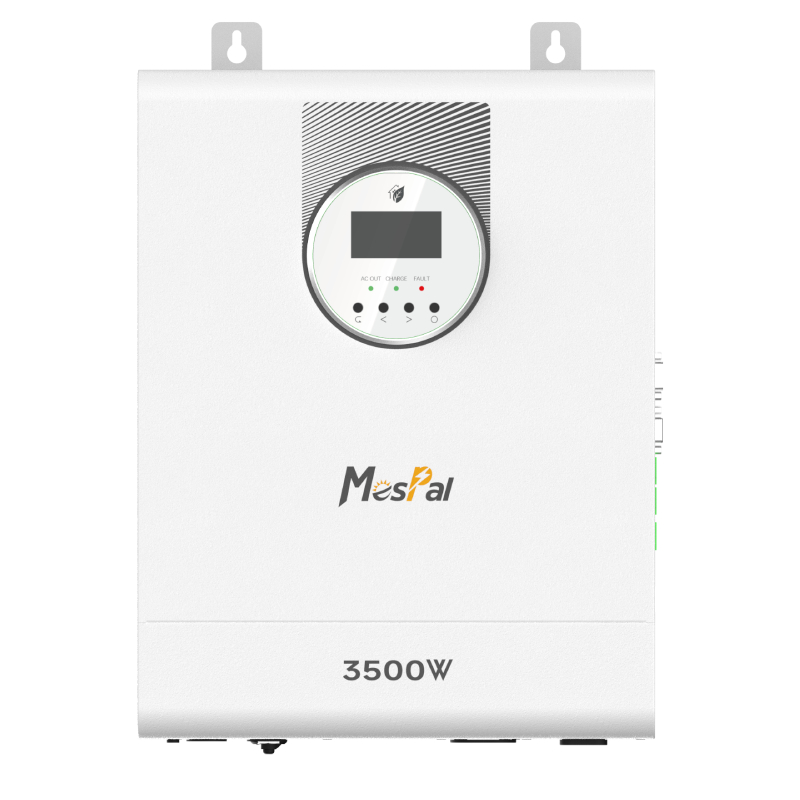

This inverter supports battery‑free mode, features a wide 100~450Vdc MPPT operating range and a broad 90~280Vac grid voltage range, and is compatible with lithium battery packs and lead‑acid batteries. Up to 9 identical units can be paralleled for single‑phase or three‑phase output, and it comes with a detachable dust cover suitable for harsh environments.

Main Features

  • 3.2‑inch segment code screen, battery‑free operation supported
  • Compatible with 51.2VDC LFP and 48VDC lead‑acid batteries
  • Plug‑and‑Play WiFi stick, optional WiFi remote monitoring
  • Pure sine‑wave output, power factor 1.0
  • Dual output priorities: mains priority (default), SBU priority
  • Built‑in PV MPPT controller: +20% charging efficiency, max. 500Vdc PV input
  • Over‑charge / over‑discharge protection for longer battery life
  • Intelligent cooling, overload & short‑circuit protection, auto alarm
  • Detachable dust cover for harsh‑environment use
3.5KW Solar Inverter
Spot Trading Countries

Spot Trading Countries

  • Nigeria, Kenya, Jamaica, Poland,Pakistan, the Philippines
  • Delivery in 7 to 15 days
What Certifications Do Your Products Have ?

What Certifications Do Your Products Have ?

  • Our product certifications includeISO, CE, UL, IEC, DOC,UN38.3, RoHS,and MSDS.
Do You Accept OEM/ODM?

Do You Accept OEM/ODM?

  • No limited. Small order also welcome.
    More quantity has better price, wewill check the best price for you. Yes,we can provide customization
Can I become your distributor?

Can I become your distributor?

  • Yes, We provide professional training,technical support, and after-salesservice.

Specifications

Item Parameter
Model SP-3K5-EP1
Rated Output Power 3500W/3500VA
Rated Output Voltage 230VAC±5%
Rated Output Frequency 50Hz/60Hz±1%
Off-grid/Grid Connected Off-grid(NOT support grid-connected)
Rated Output Power 3500W/3500VA Continuous
Rated Output Voltage In inverter mode：230VAC±5%

AC Input Rated Voltage

 230Vac
Maximum Charging Current of AC 60A
Maximum Power of PV charging 4000W
Maximum PV Open-Circuit Voltage 500V
MPPT Voltage Range 100-450VDC
Width*Depth*Height（mm） 420x325x138 mm
Weight 10.9kG
Installation Method Installation Method
