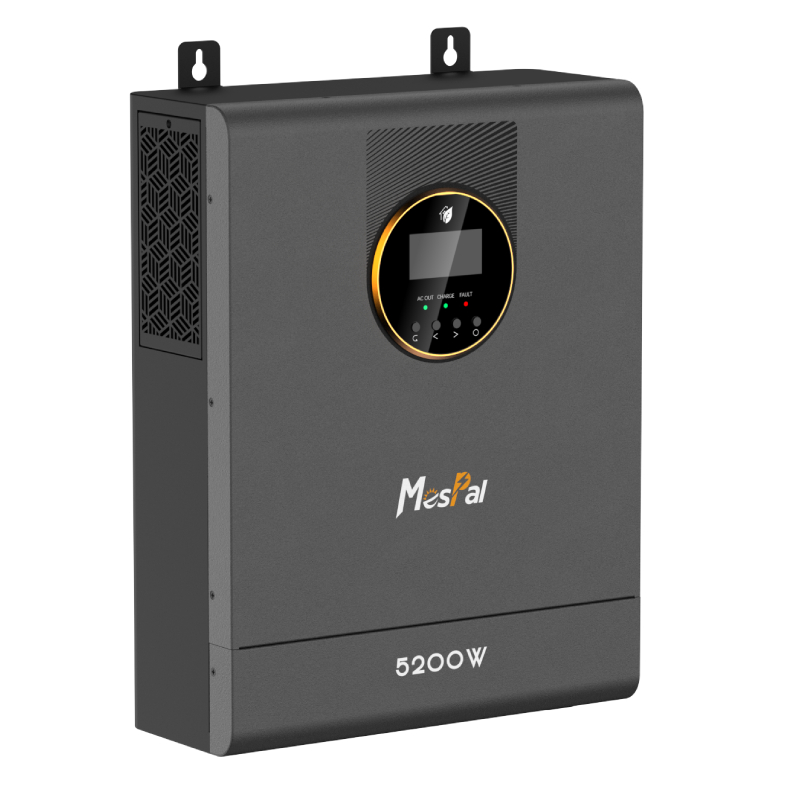

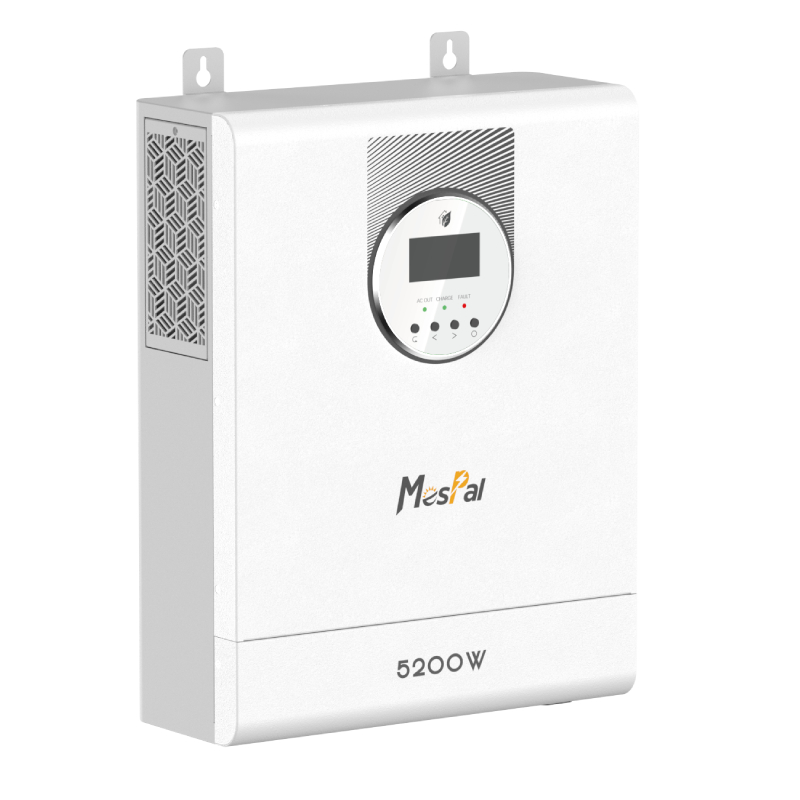

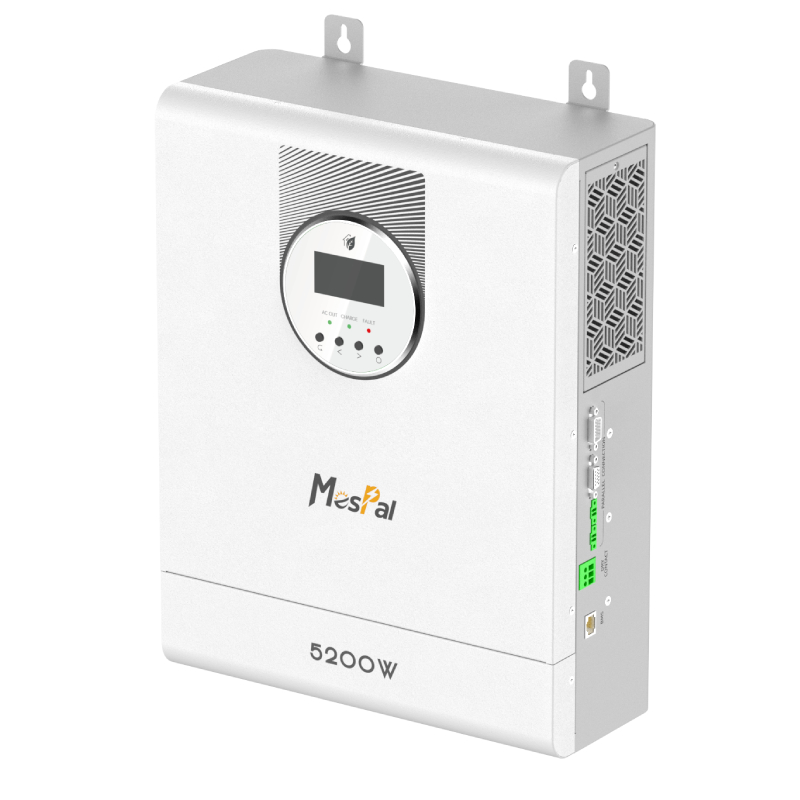

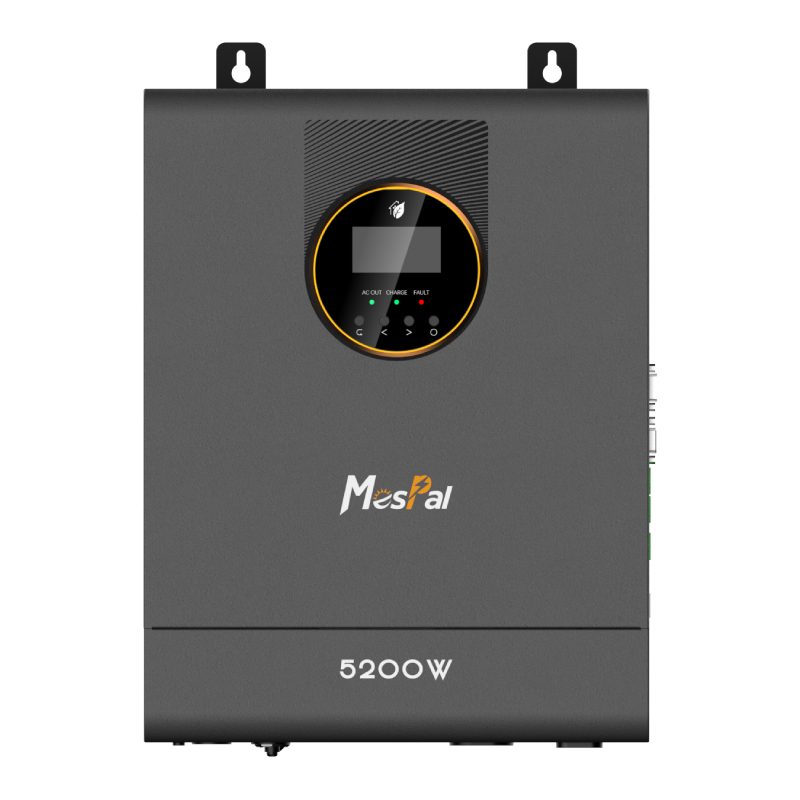

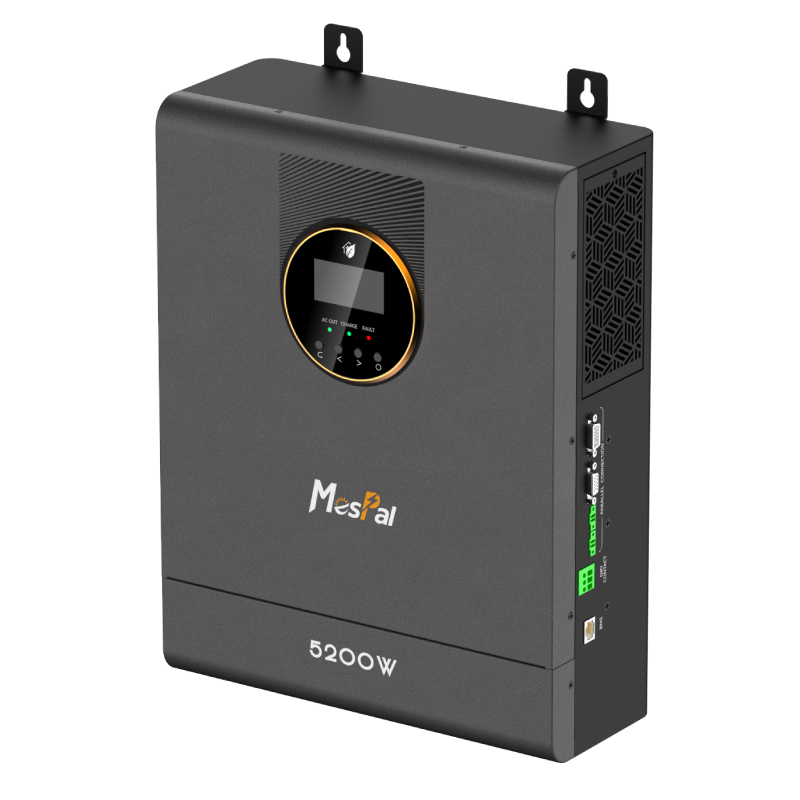

5.2KW Solar Inverter

5.2KW Solar Inverter
5.2KW Solar Inverter
5.2KW Solar Inverter
5.2KW Solar Inverter
5.2KW Solar Inverter
5.2KW Solar Inverter

Featuring pure sine‑wave output for compatibility with sensitive electronic devices, this unit delivers 5200W high‑power capacity to run heavy‑duty loads and multiple devices at the same time. It boasts high efficiency to cut energy loss for economical power generation, supports off‑grid operation for remote locations, and provides 230V AC output suitable for Europe and other regions requiring 230V power supply.

Data Download

Main features

  • 3.2‑inch segment code screen; battery‑free operation supported
  • Compatible with 51.2VDC LFP battery packs and 48VDC lead‑acid batteries
  • Plug‑and‑Play WiFi stick support, optional WiFi remote monitoring
  • Pure sine‑wave output, power factor 1.0
  • Multiple output priorities: Mains priority (default), SBU priority
  • Over‑charge & over‑discharge protection to extend battery service life
  • Intelligent exhaust cooling, overload & short‑circuit protection, auto alarm
  • Removable dust cover for harsh‑environment deployment
  • Parallelable for single‑/three‑phase output, max. 9 units in parallel
  • Independent diesel generator input interface, configurable as AC output
  • Built‑in PV MPPT controller, ≥20% higher charging efficiency; max. PV input: 500Vdc
5.2KW Solar Inverter
Spot Trading Countries

Spot Trading Countries

  • Nigeria, Kenya, Jamaica, Poland, Pakistan, the Philippines
  • Delivery in 7 to 15 days
What Certifications Do Your Products Have ?

What Certifications Do Your Products Have ?

  • Our product certifications include ISO, CE, UL, IEC, DOC,UN38.3, RoHS, and MSDS.
Do You Accept OEM/ODM?

Do You Accept OEM/ODM?

  • No limited. Small order also welcome. More quantity has better price, we will check the best price for you. Yes, we can provide customization
Can I become your distributor?

Can I become your distributor?

  • Yes, We provide professional training, technical support, and after-sales service.

Specifications

Item Parameter
Model SP-5.2K-EP1
Rated Output Power 5200W/5200VA
Rated Output Voltage 230VAC±5%
Rated Output Frequency 50Hz/60Hz±1%
Off-grid/Grid Connected Off-grid(NOT support grid-connected)
Operating Modes Two modes: mains power mode(prior by default) and SBU mode.
Parallel Operation Function (Inverter) Up to 9 units can be connected in parallel, and they can be connected in single phase or three-phase

Rated Output Voltage

 230VAC±5%
Maximum Inverter Efficiency 90-94%
AC Input Rated Voltage 230Vac
Maximum Charging Current of AC 80A
Maximum Bypass Overload Current 40A
Maximum Power of PV charging 6000W
Maximum PV Open-Circuit Voltage 500V
MPPT Voltage Range 100-450VDC
Rated Maximum Charging Current for the Battery 100A
Noise ≤55dB
IP Rating IP21
Heat Dissipation Method Forced air cooling
Width*Depth*Height（mm） 420x325x138 mm
Weight 10.9kG
Installation Method Wall-mounted

Download Data

File name
Language
Format
Size
Last updated
Download
5.2KW Energy Storage Inverter
English
PDF
0.05 MB
2026/07/01
